Name: Mini Die-Cast 24 Volt AC or DC LED Step Light 2700K/3000K/3500K/4000K/5000K
Brand: Lotus LED Lights
SKU: LSD09-5CCT-24V-BK
Price: 57.69 USD
Availability: InStock

Lotus LED Lights Mini Die-Cast 24 Volt AC or DC LED Step Light 2700K/3000K/3500K/4000K/5000K Selectable Black

Lotus LED Lights Mini Die-Cast 24 Volt AC or DC LED Step Light 2700K/3000K/3500K/4000K/5000K Selectable White

Price

Color Temp

Selectable

Finish Color

Black

White

Quantity

Lead time is 3-5 business days to ship ARO

Free Shipping on Orders Over $750 (contiguous US only)

Most in-stock items ship the same day!

Helping you maximize your green® since 2007!

[{"id":49155097657588,"title":"Selectable \/ Black","option1":"Selectable","option2":"Black","option3":null,"sku":"LSD09-5CCT-24V-BK","requires_shipping":true,"taxable":true,"featured_image":{"id":53756199043316,"product_id":9614587724020,"position":1,"created_at":"2026-08-14T14:24:10-04:00","updated_at":"2026-08-14T14:24:12-04:00","alt":"Lotus LED Lights Mini Die-Cast 24 Volt AC or DC LED Step Light 2700K\/3000K\/3500K\/4000K\/5000K Selectable Black","width":1000,"height":1000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/LSD-BK_1.jpg?v=1786731852","variant_ids":[49155097657588]},"available":true,"name":"Mini Die-Cast 24 Volt AC or DC LED Step Light 2700K\/3000K\/3500K\/4000K\/5000K - Selectable \/ Black","public_title":"Selectable \/ Black","options":["Selectable","Black"],"price":5769,"weight":454,"compare_at_price":null,"inventory_management":"shopify","barcode":"782588044699","featured_media":{"alt":"Lotus LED Lights Mini Die-Cast 24 Volt AC or DC LED Step Light 2700K\/3000K\/3500K\/4000K\/5000K Selectable Black","id":44766408409332,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/LSD-BK_1.jpg?v=1786731852"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":49155097690356,"title":"Selectable \/ White","option1":"Selectable","option2":"White","option3":null,"sku":"LSD09-5CCT-24V-WH","requires_shipping":true,"taxable":true,"featured_image":{"id":53756199076084,"product_id":9614587724020,"position":2,"created_at":"2026-08-14T14:24:10-04:00","updated_at":"2026-08-14T14:24:12-04:00","alt":"Lotus LED Lights Mini Die-Cast 24 Volt AC or DC LED Step Light 2700K\/3000K\/3500K\/4000K\/5000K Selectable White","width":1000,"height":1000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/LSD-WH.jpg?v=1786731852","variant_ids":[49155097690356]},"available":true,"name":"Mini Die-Cast 24 Volt AC or DC LED Step Light 2700K\/3000K\/3500K\/4000K\/5000K - Selectable \/ White","public_title":"Selectable \/ White","options":["Selectable","White"],"price":5769,"weight":454,"compare_at_price":null,"inventory_management":"shopify","barcode":"782588044682","featured_media":{"alt":"Lotus LED Lights Mini Die-Cast 24 Volt AC or DC LED Step Light 2700K\/3000K\/3500K\/4000K\/5000K Selectable White","id":44766408442100,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/LSD-WH.jpg?v=1786731852"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

{"id":49155097657588,"title":"Selectable \/ Black","option1":"Selectable","option2":"Black","option3":null,"sku":"LSD09-5CCT-24V-BK","requires_shipping":true,"taxable":true,"featured_image":{"id":53756199043316,"product_id":9614587724020,"position":1,"created_at":"2026-08-14T14:24:10-04:00","updated_at":"2026-08-14T14:24:12-04:00","alt":"Lotus LED Lights Mini Die-Cast 24 Volt AC or DC LED Step Light 2700K\/3000K\/3500K\/4000K\/5000K Selectable Black","width":1000,"height":1000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/LSD-BK_1.jpg?v=1786731852","variant_ids":[49155097657588]},"available":true,"name":"Mini Die-Cast 24 Volt AC or DC LED Step Light 2700K\/3000K\/3500K\/4000K\/5000K - Selectable \/ Black","public_title":"Selectable \/ Black","options":["Selectable","Black"],"price":5769,"weight":454,"compare_at_price":null,"inventory_management":"shopify","barcode":"782588044699","featured_media":{"alt":"Lotus LED Lights Mini Die-Cast 24 Volt AC or DC LED Step Light 2700K\/3000K\/3500K\/4000K\/5000K Selectable Black","id":44766408409332,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/LSD-BK_1.jpg?v=1786731852"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

Details
Specifications
Documents
Request A Quote

Details

Lotus LED Light’s step lights are a great option for illuminating your stairwell, hallway, and walkway area. These step lights provide the right illumination required for safety while also incorporating more energy-saving features. Being CCT-tunable, these lights allow the user to select between 5 different white light color temperatures to find the right light output to suit your application.

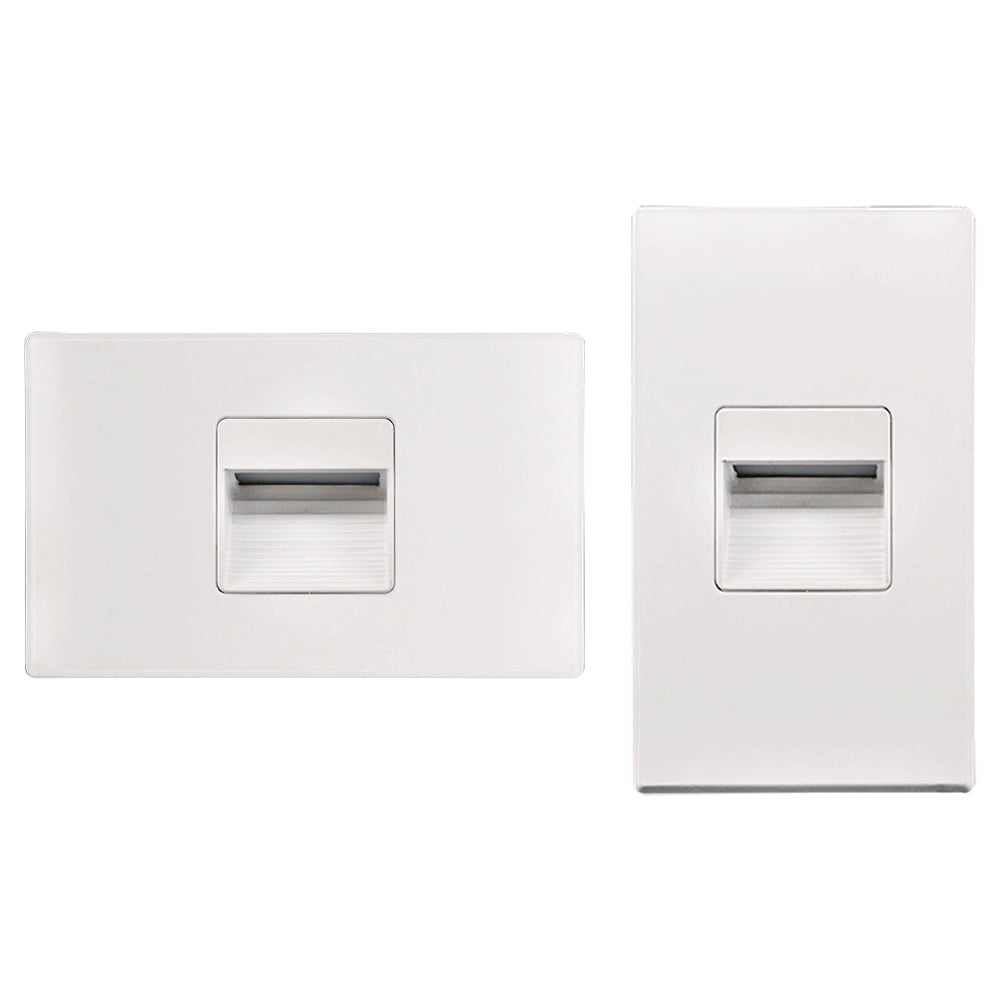

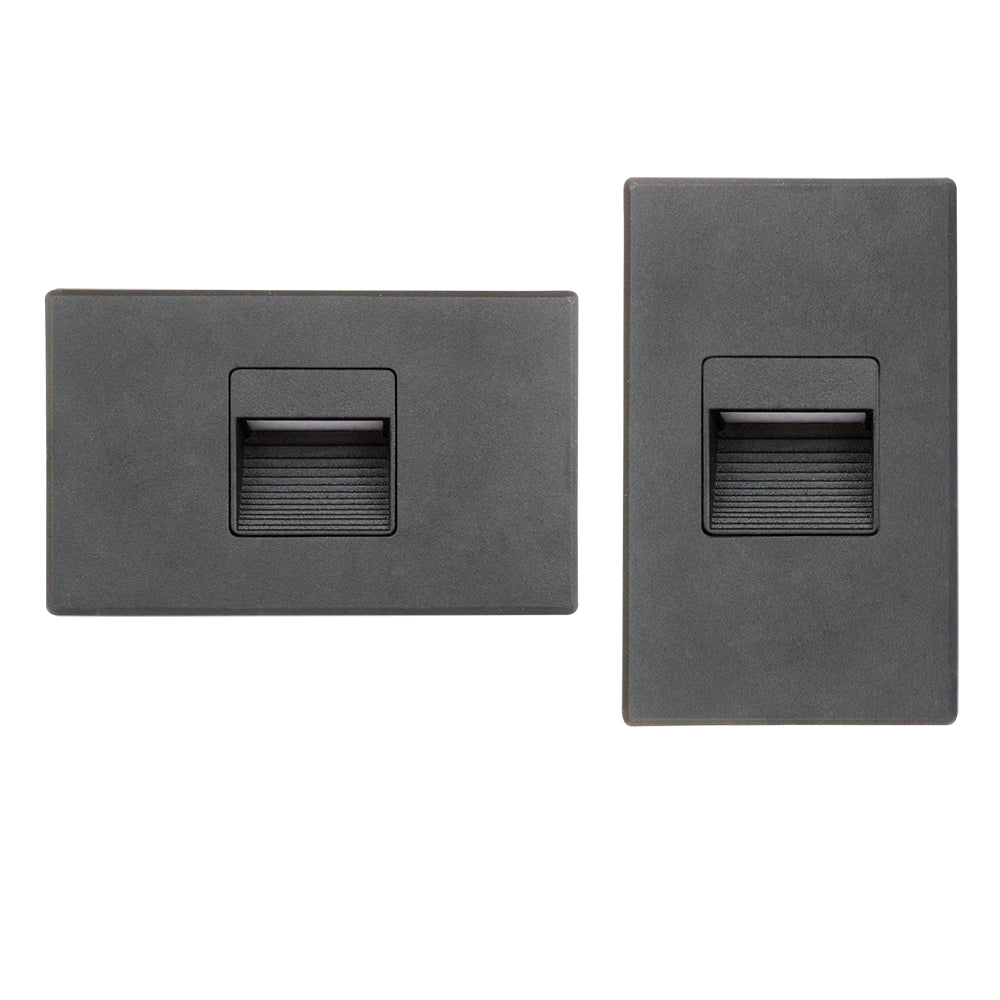

Lotus LED Light’s Mini Die-Cast 24V AC or DC LED Step Lights incorporate dual horizontal or vertical mounting options in one fixture. Available in black (LSD09-5CCT-24V-BK) or white (LSD09-5CCT-24V-WH) finish and only consume 2.5 Watts. Offering user selectable CCT options 2700/3000/3500/4000/5000K to perfectly match the ambiance of any room. Rated for 50,000 Hours and backed by a 3-year warranty.

Specifications

Manufacturer	Lotus LED Lights
MPN	LSD09-5CCT-24V-BK	LSD09-5CCT-24V-WH
SKU	LSD09-5CCT-24V-BK	LSD09-5CCT-24V-WH
UPC	782588044699	782588044682
Trim Color	Black	White
Lighting Technology	LED
Color Temperature (Kelvin)	2700/3000/3500/4000/5000K
Wattage	2.5 Watts
Voltage	24 Volt AC or DC
Lumens	90-100 Lumens
Dimmable	Yes
Rated Life	50,000 Hours
CRI (Color Rendering Index)	90 CRI
Dimensions	4-1/2" L x 2-3/4" H x 2" D
Certifications	cETLus
Environment	Indoor- Wet & Dry
Ambient Temperature	-4°F (-20°C) to +104°F (+40°C)
Warranty	3 Year Warranty

Documents

Nicor Mini Die-Cast 24 Volt AC or DC LED Step Light Specification Sheet

Nicor Mini Die-Cast 24 Volt AC or DC LED Step Light installation Instructions

Request A Quote

Green Electrical Supply is here to help you maximize your green^® on all your electrical supply purchases.

Looking for a quote or need help finding an item, simply use our Contact Us form to request a quote, get assistance, or provide feedback. If you're more of a talker, feel free to give us a call at 248-276-9640 during our weekday hours from 8 am to 5 pm EST.

Here's a little tip to make your quote request even smoother: don't forget to copy the SKU from above and include it along with the quantity in your request. It's a small detail that ensures we get you the most accurate and efficient service. And, just a heads up, the SKU is dynamic, especially for products with multiple options. So, be sure to choose your required options first to view the precise SKU.
