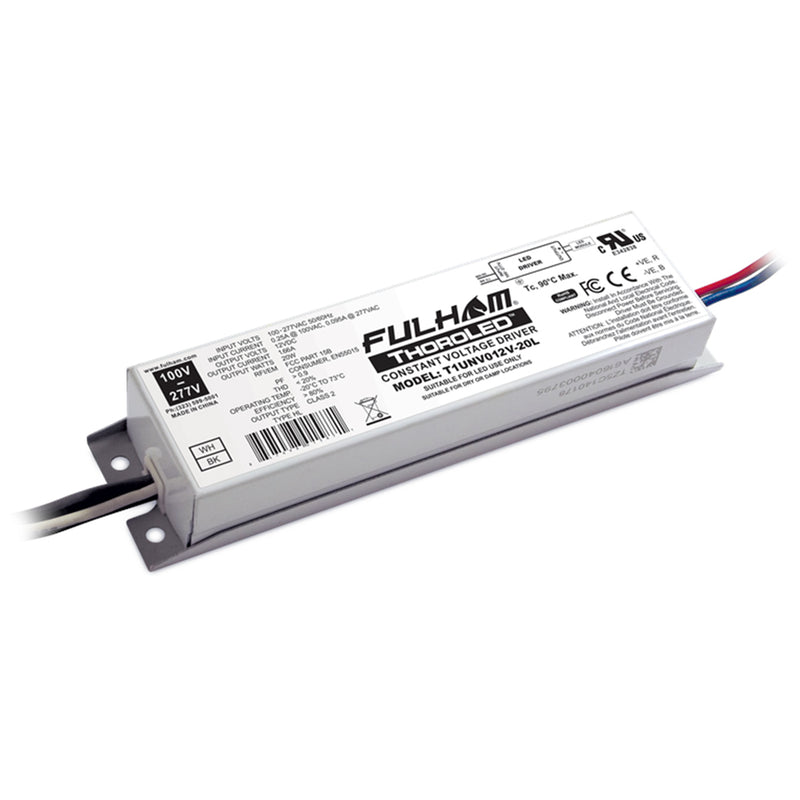

T1M1UNV012V-20L 20 Watt LED 1660mA Constant Voltage Driver

Fulham SKU: T1M1UNV12V-20L
Fulham T1M1UNV012V-20L 20 Watt LED 1660mA Constant Voltage Driver

T1M1UNV012V-20L 20 Watt LED 1660mA Constant Voltage Driver

Fulham SKU: T1M1UNV12V-20L
Regular price $62.23
/
Shipping calculated at checkout.
  • Free Shipping on Orders Over $750
  • Secure payments

Fulham Company Group is a leading global provider of intelligent, sustainable commercial lighting components and electronics for use in commercial general lighting, parking structure, signage, horticultural, UV and other applications. The company develops and manufactures a variety of award-winning LED and emergency products, as well as legacy products across multiple lighting platforms. Fulham is dedicated to intelligent, sustainable lighting solutions that give their users the power to control their light.

Fulham brings you their ThoroLED Drivers. These ThoroLEDs are constant voltage drivers that are dimmable (0-10V dimming) and come in single and multiple output channel models. These drivers have a wide range of wattages and current outputs to meet numerous applications. They will most definitely stand the test of time with a 5 year limited warranty. The rugged construction guarantees performance and reliability various settings. The ThoroLED driver is comes in compact (square) or linear (long) style cases, allowing them to fit into your application.

This item is the Fulham ThoroLED low voltage power supply part number T1M1UNV012V-20L. The input voltage is universal 120-277 volt and is a single-output channel, 0-10V dimmable LED driver. The max output current is 1.66A output. This driver will operate any LED module designed to accept constant current voltage of 12V and has a maximum input current of 1.66A. The Fulham ThoroLED Driver comes with multiple protections including input surge protection, input current, output short circuit, output open circuit, output to ground short, and overload protection. The ThoroLED 120-277V 20W driver's approvals include, cURus Class 2, RoHS, Type HL, CE, Dry or Damp Locations.

Manufacturer Fulham
MPN T1M1UNV12V-20L
SKU T1M1UNV12V-20L
UPC 847098015352
Lighting Technology LED
Driver Constant Voltage
Output Current 1.66A (1660mA)
Input Current 0.25A @ 100V; 0.095A @ 277V
Output Wattage 20 Watt
Input Voltage 100-277V
Output Voltage 12VDC
Frequency 50-60Hz
Power Factor >0.9
THD (Total Harmonic Distortion) Power 20%
Efficiency 80%
Dimming 0-10V Dimming
Sound Rating A
Max Case Temperature 90°C
Operating Temperature -20°C to 73°C
Rated Life 50,000 Hours
Dimensions 6.30" L x 1.57" W x 0.98" H
Certifications RoHS Compliant, cURus Class 2
Environment Dry or Damp Location
Warranty 5 Year Limited
