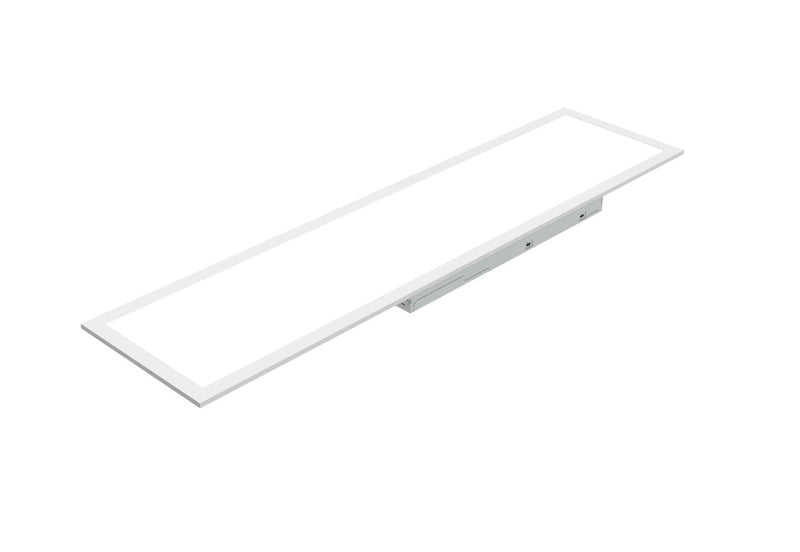

1x4 20/25/30 Watt Selectable 120-277V LED Flat Panel 3500/4000/5000K

Halco Lighting Technologies SKU: 90518
Halco Lighting Technologies 1x4 20/25/30 Watt Selectable 120-277V LED Flat Panel 3500/4000/5000K

1x4 20/25/30 Watt Selectable 120-277V LED Flat Panel 3500/4000/5000K

Halco Lighting Technologies SKU: 90518
  • DLC Premium Listed, Title 24 Compliant
/
Color Temp
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!
Details

The Halco Flat Panel Series is a family of highly efficient, versatile, configurable recessed fixtures, designed for recessed applications. The DLC Premium listed panels offer lumen output and color temperature selectability, making their versatility and simple aesthetic design perfect for educational, commercial and retail and applications.

This is the Halco ProLED FPL-14-LS-CS-UNV (90518). This 1x4 LED Flat Panel consumes a selectable 20/25/30 watts of 120-277 volt energy and the driver has a power factor of 90%. The 90518 generates an average of 2,595-3,730 lumens - that's an efficacy of 129-141 lm/W with a rated lumen maintenance of 50,000 hours based on L70 lumen depreciation. This selectable LED flat panel can change between 3500K Bright White, 4000K Cool White, and 5000K Daylight with a simple toggle switch located on the back of the fixture, and has a CRI of at least 80. This 1x4 flat light fixture is designed to be compatible with most standard 0-10V dimming controls. All Halco's LED Flat Panel fixtures carry a 5 Year Warranty and are rated for Damp locations.

Specifications
Manufacturer Halco Lighting Technologies
MPN FPL-14-LS-CS-UNV
SKU 90518
UPC 807154905188
Lighting Technology LED
Voltage 120-277V
Frequency 50/60Hz
Dimmable Yes, 0-10V Dimming
Beam Angle 115 Degrees
Rated Life 50,000 Hours
CRI (Color Rendering Index) 80 CRI
Power Factor >0.9
Housing Steel Housing, Aluminum Frame
Lens Polymethyl Methacrylate
Dimensions 47-3/4" x 11-5/16" x 1-5/8"
Certifications DLC Premium, Title 24 Compliant, FCC Compliant
DLC Product ID S-F1QNY9
Environment Damp Location
Warranty 5 Year Standard
Wattage 20 Watts
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 2,595 Lumens 2,660 Lumens 2,628 Lumens
Efficiency (Lumens Per Watt) 134 LPW 141 LPW 136 LPW



Wattage 25 Watts
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 3,163 Lumens 3,263 Lumens 3,204 Lumens
Efficiency (Lumens Per Watt) 132 LPW 139 LPW 134 LPW



Wattage 30 Watts
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 3,608 Lumens 3,730 Lumens 3,646 Lumens
Efficiency (Lumens Per Watt) 129 LPW 137 LPW 131 LPW



Documents

Halco Lighting Technologies Selectable LED Flat Panel Specification Sheet

Halco Lighting Technologies Selectable LED Flat Panel Installation Instructions

Halco Lighting Technologies Selectable LED Flat Panel DLC Product Listing
