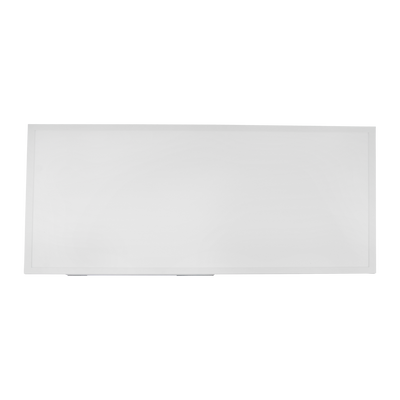

Name: 2x4 30/40/50 Selectable 120-277V LED Backlit Flat Panel 3500/4000/5000K
Brand: EiKO
SKU: 13178
Price: 100.26 USD
Availability: InStock

EiKO 2x4 30/40/50 Selectable 120-277V LED Backlit Flat Panel 3500/4000/5000K Selectable

EiKO 2x4 30/40/50 Selectable 120-277V LED Backlit Flat Panel 3500/4000/5000K

DLC Listed

Price

Color Temp

Selectable

Quantity

Please call to confirm availability.

Free Shipping on Orders Over $750

Most in-stock items ship the same day!

[{"id":43893300560116,"title":"Selectable","option1":"Selectable","option2":null,"option3":null,"sku":"13178","requires_shipping":true,"taxable":true,"featured_image":{"id":39416322130164,"product_id":8087460970740,"position":1,"created_at":"2023-04-17T12:08:07-04:00","updated_at":"2023-04-17T12:08:07-04:00","alt":"EiKO 2x4 30\/40\/50 Selectable 120-277V LED Backlit Flat Panel 3500\/4000\/5000K Selectable  ","width":1200,"height":1200,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/products\/BP1-2230S-40-U_01_d0dddf75-3216-40be-8fc3-f61480746cf2.png?v=1681747687","variant_ids":[43893300560116]},"available":true,"name":"2x4 30\/40\/50 Selectable 120-277V LED Backlit Flat Panel 3500\/4000\/5000K - Selectable","public_title":"Selectable","options":["Selectable"],"price":10026,"weight":3629,"compare_at_price":null,"inventory_management":"shopify","barcode":"031293131782","featured_media":{"alt":"EiKO 2x4 30\/40\/50 Selectable 120-277V LED Backlit Flat Panel 3500\/4000\/5000K Selectable  ","id":32010455810292,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/products\/BP1-2230S-40-U_01_d0dddf75-3216-40be-8fc3-f61480746cf2.png?v=1681747687"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

Details
Specifications
Documents
Request A Quote

Details

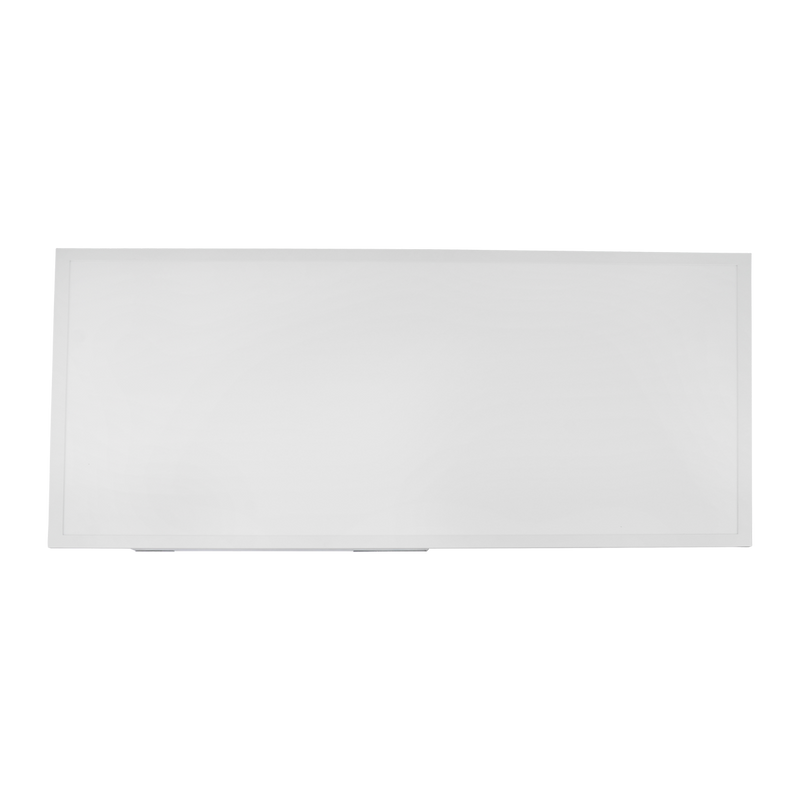

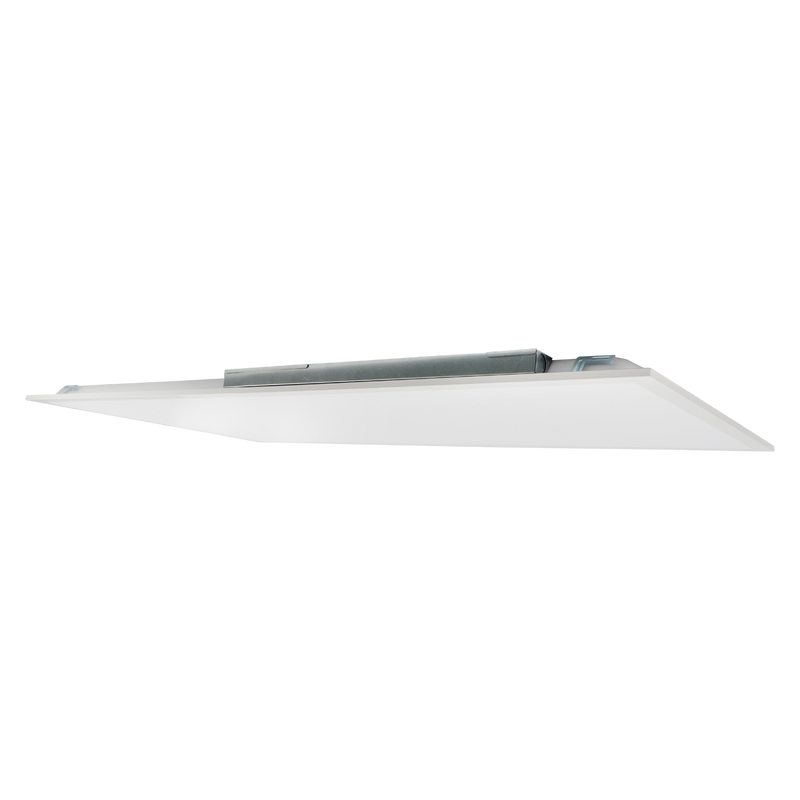

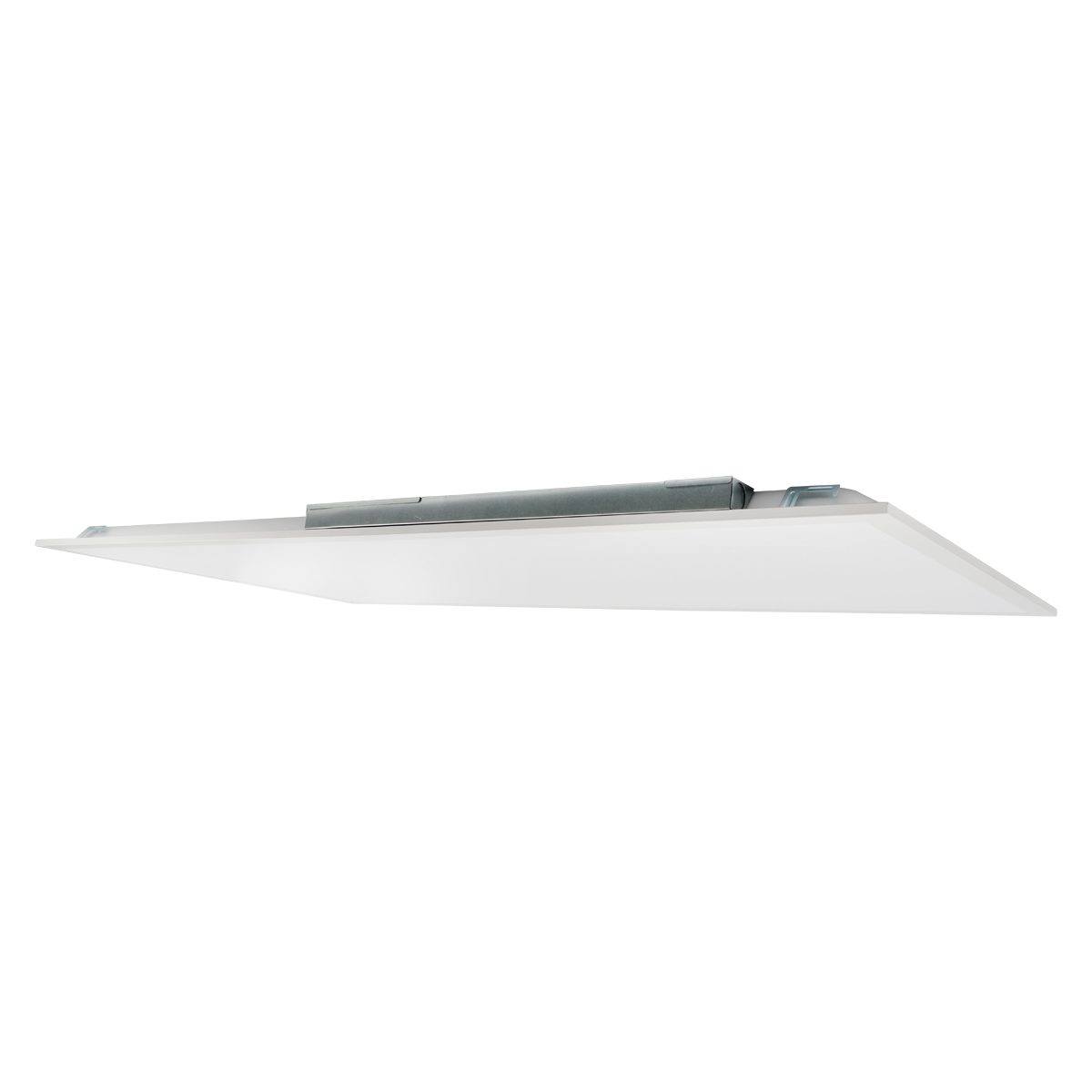

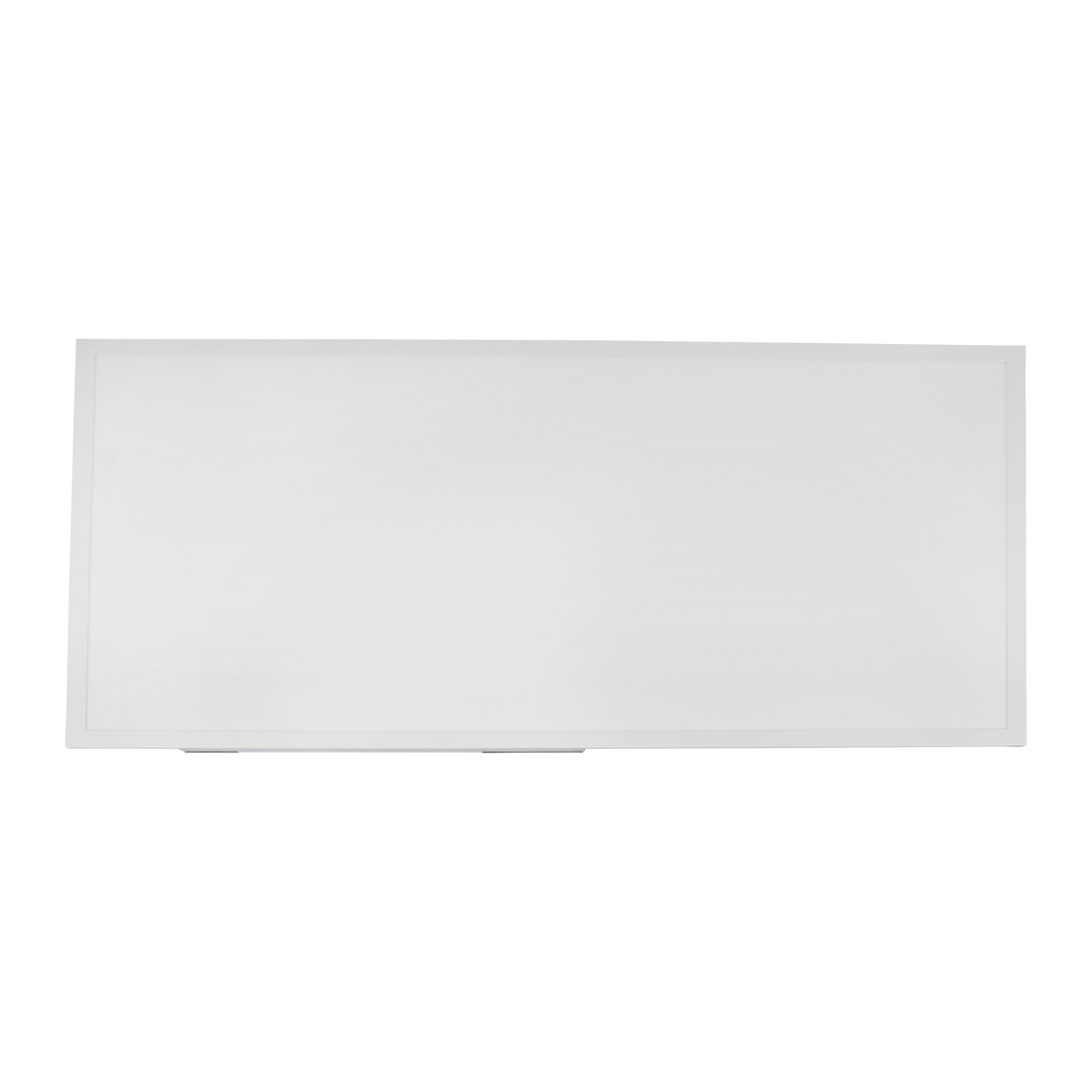

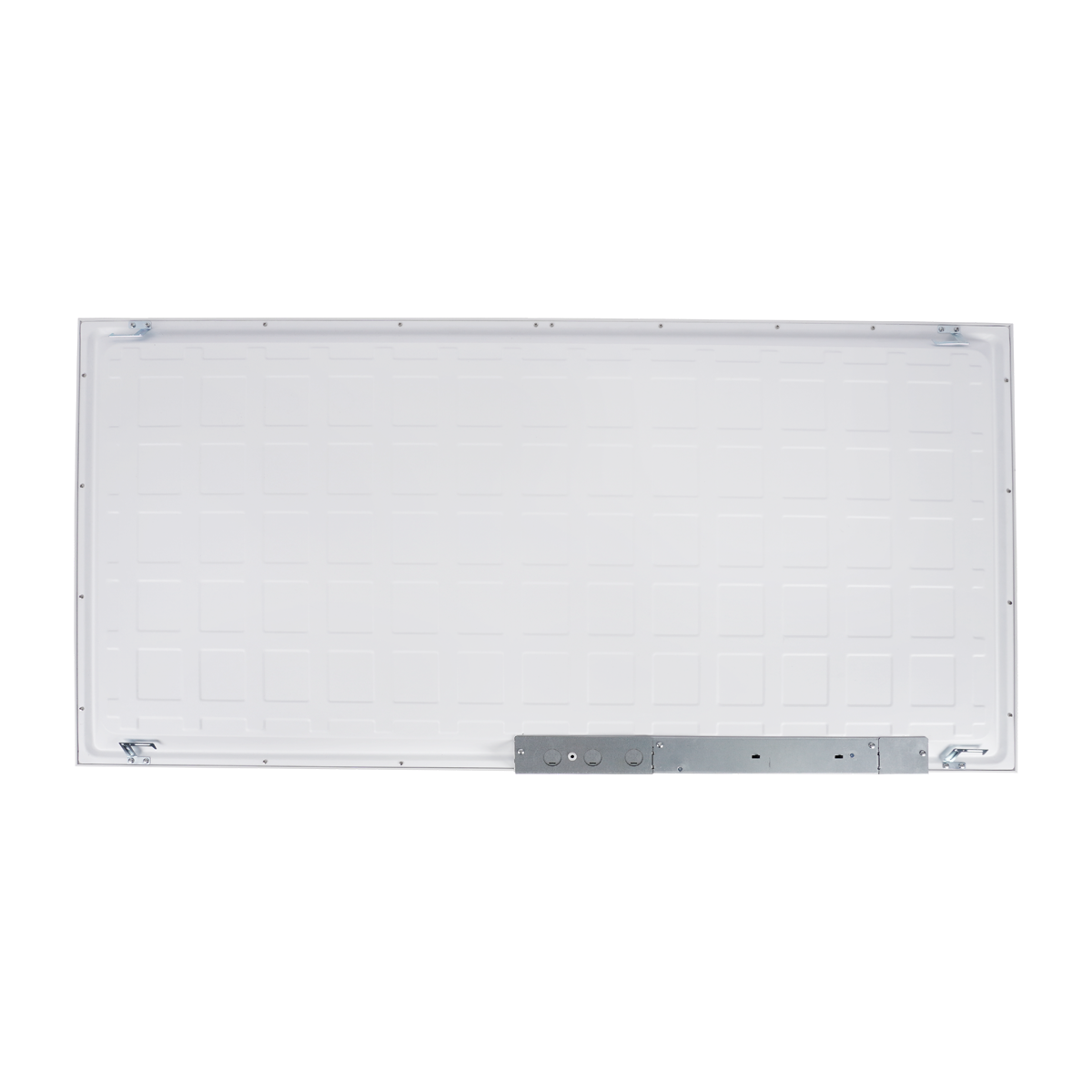

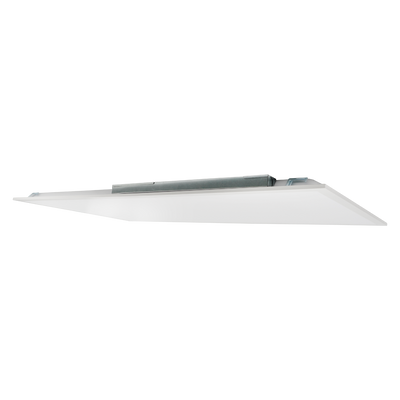

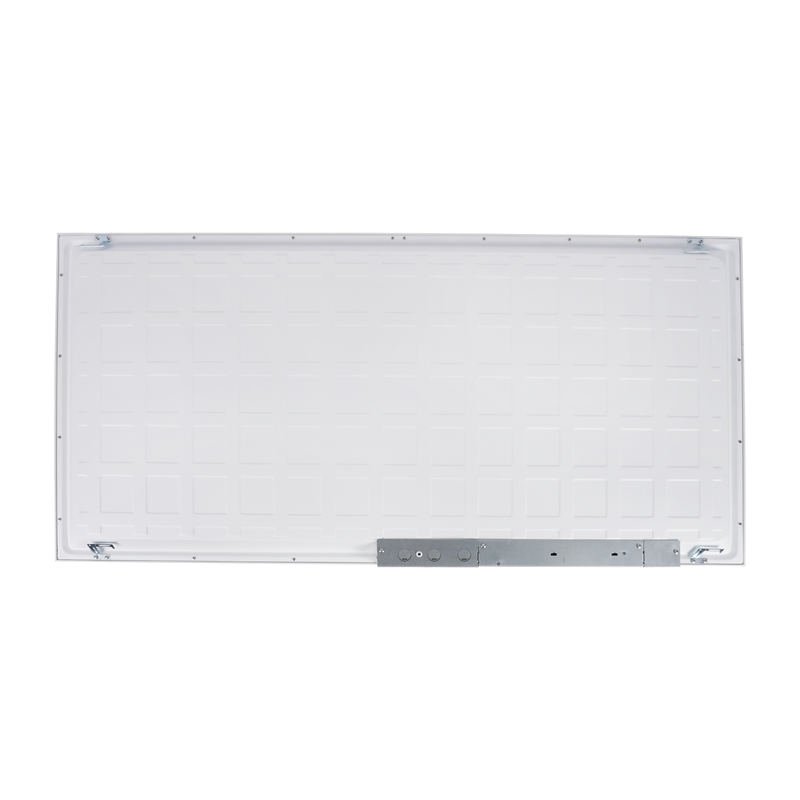

The EiKO LED flat panel are designed for superior backlighting, with its LED arrangement across the entire panel. This efficient design requires no light guide plate, making it lightweight and resilient, even when hung. With 4 knockouts and a 6” junction box for easy access, plus seismic clips for quick installation, this is the perfect light for quick and easy flat panel installation.

This 2x4 wattage selectable 30/40/50 watt 120-277V LED backlit flat panel, part number BP1-24PS50S-FCCT-U (13178), is perfect for shallow plenum spaces. Featuring a backlit design that provides direct light without a light guide plate, a high quality PMMA diffuse lens, and a lightweight design, this panel is easy and fast to install. With 5,500/4,400/3,300 lumens and 3000K warm white, 4000K cool white and 5000K daylight color temperatures, you'll get an impressive 110 lumens per watt. It also features 0-10V dimming and a 5 year limited warranty.

Specifications

Manufacturer	EiKO
MPN	BP1-24PS50S-FCCT-U
SKU	13178
UPC	031293131782
Lighting Technology	LED
Voltage	120-277V
Color Temperature (Kelvin)	3000/4000/5000K
Wattage	30 Watt	40 Watt	50 Watt
Lumens	3,300 Lumens	4,400 Lumens	5,500 Lumens
Efficiency (Lumens Per Watt)	110 LPW
Dimmable	0-10V Dimming
Beam Angle	120 Degrees
Rated Life	50,000 Hours
CRI (Color Rendering Index)	80 CRI
Power Factor	>0.9
THD (Total Harmonic Distortion)	<20%
Construction	White Powder Coated Aluminum
Lens	Non-yellowing PMMA Diffusing
Fluorescent Equivalent	4 x 32 Watt 4FT T8
Operating Temperature	-20°C to 40°C
Dimensions	47 3/4" L x 23 3/4" W x 1 13/16" H
Certifications	DLC Listed, RoHS Compliant, FCC Compliant, ETL Listed
DLC Product ID	S-IKC6XZ
Environment	Damp Location
Warranty	5 Year Limited

Documents

EiKO Selectable LED Backlit Flat Panel Specification Sheet

EiKO Selectable LED Backlit Flat Panel Installation Instructions

EiKO Selectable LED Backlit Flat Panel DLC Product Listing
