Since its first super slim products launch in 2010, Lotus LED Lights have set the competitive bar extremely high and are the most preferred super slim recessed LED lights used by architects, interior decorators, designers, builders, electricians and homeowners in North America. Lotus LED Lights offers superior flexibility, unlimited layout options and can be installed anywhere in your home to create a gorgeous high-end living environment by delivering warm and inviting light. These ultra thin recessed LED down lights are absolutely perfect for tight spaces, soffits, sloped ceilings, insulated and dropped ceilings. The Lotus LED Lights super slim recessed LED fixtures are cULus Listed, FCC, Energy Star Certified, rated Type IC (Direct Contact with Insulation) and they are air-tight. A recessed downlight housing (also called out as a Pot Light Housing) is NOT Required - even for Insulated Ceilings. This 2.25 Thick, low profile LED fixture fits directly under joists giving you maximum lighting layout flexibility in even the tightest spaces.
Every Lotus LED fixture is constructed with integral Epistar LEDs and the 120 volt, 60Hz, isolated, external, magnetic, constant current driver is factory installed inside the junction box. Lotus engineered all of their fixtures with the constant current driver in order run their fixtures at 90% of their rated current. This provides additional reliability and longer life. You need one driver for every fixture. Lotus engineers believe that if you have one driver for multiple fixtures you need to have an additional current regulator on every fixture if you want all fixtures to have the same brightness and the ability to dim simultaneously. The Lotus LED system is more reliable. Should you need to disconnect one fixture you would not effect the operation of the others. (Note: All connections in any ceiling requires a junction box, which Lotus provides as the driver compartment). Fixture comes connected to the driver by 12 long low voltage cable with waterproof connector in the middle. Depending on where you want the driver to be you have 2 options: To locate the driver next to the fixture simply run your line voltage wiring to the first junction box in your circuit and daisy chain to the junction boxes of the other fixtures, or install all of your drivers at one location and use low voltage extension cables to the fixtures (Use only extensions provided by the manufacturer. Available jumper cables are 6 feet (1.8m) and 20 feet (6m). Cables are linkable). The maximum run should not exceed 40 feet (12m).
There are two 4" Gimbal models available to you from Lotus. The two primary differences are the brightness generated and the light color. As for brightness: model LL4G/30K generates 1000 lumens and model LL4G/41K generates 1050 lumens. Both 4" recessed gimbal down lights offer a true color 94 CRI. They are available in either a white, black or brushed nickel finish. The trim diameter and width on the two models are the same: 4 15/16 inch diameter (Note: The hole has to be carefully cut since there is no room for mistakes). How much space do you need in the ceiling for the Gimbal? For these inch fixtures you need 2.5 inches of space above the drywall for Romex and 3 1/2 inches for MC or BX installations. The Lotus LED Light fixtures are really easy to install. Just check out the short video below.

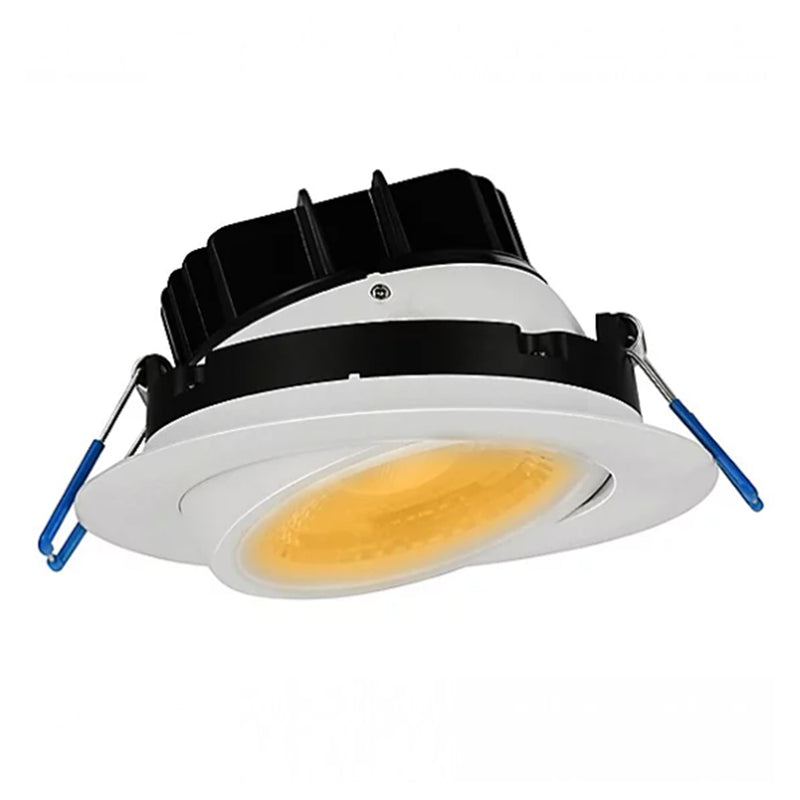

This item is the Lotus LED Lights LL4G/(XX)K/WH. It is the slim, low profile, 11.4 watt, 4" x 2 1/4" thin, round, Gimbal, LED recessed down light with a white trim (a black or brushed nickel trim option is also available). The LL4G/(XX)K/WH is Air-Tight and is rated for Wet Locations. This 4 inch LED retrofit has a beam angle of 40 degrees, tilt angle of 30 degrees with a 360 degree rotation. They operate on 120V, 60Hz input voltage (a 277v version is also available) and are dimmable down to about 10% when using approved dimmer switches.
Each Lotus LED Lights recessed down light carries a 10 year residential or 5 year commercial limited warranty. Lotus can offer this because every single driver is powered for a minimum of 24 hours together with the fixture that it is shipped with. Every LED is visually checked before and after the PCB is mounted on the fixture. No Random Tests Lotus Hand Tests Every Fixture And Driver.
