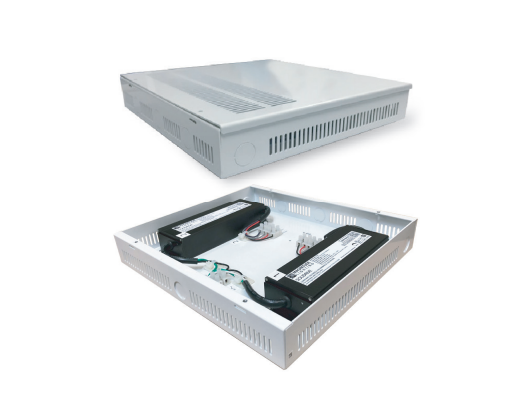

The EZJBOX (EZ Junction Box) Series features select Magnitude Class 2, electronic LED drivers integrated into a simple surface-mounted, multichannel junction box, making it the perfect product for multi-output needs in tape lighting, tube lighting, linear lighting, and multiple other commercial lighting applications. The high-quality metal, UL Listed junction box includes multiple ⁷⁄₈” knock-outs and comes pre-wired for quick and easy installation.
The EZJBOX | SOLIDRIVE uses Magnitude’s SOLIDRIVE electronic Class 2, 0-10V or phase-cut dimmable LED drivers with 2-channel configuration. The drivers feature hiccup mode, over current and short circuit protection, as well as an efficiency over 84% resulting in low operating case temperature. The SOLIDRIVE Series is dimmable down to 1% with a 0-10V or phase-cut dimmer and is also available in a non-dimmable version.
This is the Magnitude EZJ-S-N-192-48DC, a EZJ-Box with SOLIDRIVE constant voltage electronic drivers in a junction box. The input voltage is 120-277 volt and the max output current is 2000mA each driver. This junction box includes (2) 96 Watt constant voltage drivers, totaling 192 watts. The physical dimensions of this product is 11" length x 12" width x 2.13" height with a 5 year warranty.
| Manufacturer | Magnitude Lighting |
| MPN | EZJ-S-N-192-48DC |
| SKU | EZJ-S-N-192-48DC |
| UPC | 810020792942 |
| Lighting Technology | LED |
| Driver Type | Constant Current |
| Wattage | 192 Watts (2 x 96 Watt Drivers) |
| Input Voltage | 120-277VAC |
| Voltage Output | 48VDC |
| Input Current | 0.96A |
| Current Output | 4000mA (2 x 2000mA Drivers) |
| Frequency | 50/60Hz |
| Power Factor | 0.95 |
| Operating Temperature | -30°C to 50°C (-22°F to 122°F) |
| Housing | Galvanized Steel |
| Mounting | 4-Keyhole Mount |
| Dimensions | 11" L x 12" W x 2.13" H |
| Certifications | UL8750 Class 2, Title 24 Compliant |
| Environment | Dry Location |
| Warranty | 5 Year Standard |
