192 Watt 5400mA 36VDC EZJ-Box SOLIDRIVE 0-10V Dim Constant Voltage LED Junction Box

Magnitude Lighting SKU: EZJ-S-D-192-36DC
Magnitude Lighting 192 Watt 5400mA 36VDC EZJ-Box SOLIDRIVE 0-10V Dim Constant Voltage LED Junction Box

192 Watt 5400mA 36VDC EZJ-Box SOLIDRIVE 0-10V Dim Constant Voltage LED Junction Box

Magnitude Lighting SKU: EZJ-S-D-192-36DC
Regular price $229.23
/
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

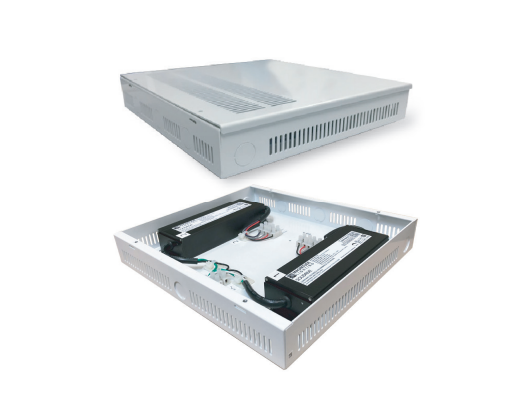

The EZJBOX (EZ Junction Box) Series features select Magnitude Class 2, electronic LED drivers integrated into a simple surface-mounted, multichannel junction box, making it the perfect product for multi-output needs in tape lighting, tube lighting, linear lighting, and multiple other commercial lighting applications. The high-quality metal, UL Listed junction box includes multiple ⁷⁄₈” knock-outs and comes pre-wired for quick and easy installation.

The EZJBOX | SOLIDRIVE uses Magnitude’s SOLIDRIVE electronic Class 2, 0-10V or phase-cut dimmable LED drivers with 2-channel configuration. The drivers feature hiccup mode, over current and short circuit protection, as well as an efficiency over 84% resulting in low operating case temperature. The SOLIDRIVE Series is dimmable down to 1% with a 0-10V or phase-cut dimmer and is also available in a non-dimmable version.

This is the Magnitude EZJ-S-D-192-36DC, a EZJ-Box with SOLIDRIVE constant voltage electronic drivers in a junction box. The input voltage is 120-277 volt and the max output current is 2700mA each driver. This junction box includes (2) 96 Watt constant voltage drivers, totaling 192 watts and has 0-10V dimming. The physical dimensions of this product is 11" length x 12" width x 2.13" height with a 5 year warranty.

Manufacturer Magnitude Lighting
MPN EZJ-S-D-192-36DC
SKU EZJ-S-D-192-36DC
UPC 810020792959
Lighting Technology LED
Driver Type Constant Current
Wattage 192 Watts (2 x 96 Watt Drivers)
Input Voltage 120-277VAC
Voltage Output 36VDC
Input Current 0.96A
Current Output 5400mA (2 x 2700mA Drivers)
Frequency 50/60Hz
Dimmable Yes, 0-10V
Power Factor 0.95
Operating Temperature -30°C to 50°C (-22°F to 122°F)
Housing Galvanized Steel
Mounting 4-Keyhole Mount
Dimensions 11" L x 12" W x 2.13" H
Certifications UL8750 Class 2, Title 24 Compliant
Environment Dry Location
Warranty 5 Year Standard
