The EZJBOX (EZ Junction Box) Series features select Magnitude Class 2, electronic LED drivers integrated into a simple surface-mounted, multichannel junction box, making it the perfect product for multi-output needs in tape lighting, tube lighting, linear lighting, and multiple other commercial lighting applications. The high-quality metal, UL Listed junction box includes multiple ⁷⁄₈” knock-outs and comes pre-wired for quick and easy installation.
The EZJBOX | SOLIDRIVE uses Magnitude’s SOLIDRIVE electronic Class 2, 0-10V or phase-cut dimmable LED drivers with 2-channel configuration. The drivers feature hiccup mode, over current and short circuit protection, as well as an efficiency over 84% resulting in low operating case temperature. The SOLIDRIVE Series is dimmable down to 1% with a 0-10V or phase-cut dimmer and is also available in a non-dimmable version.

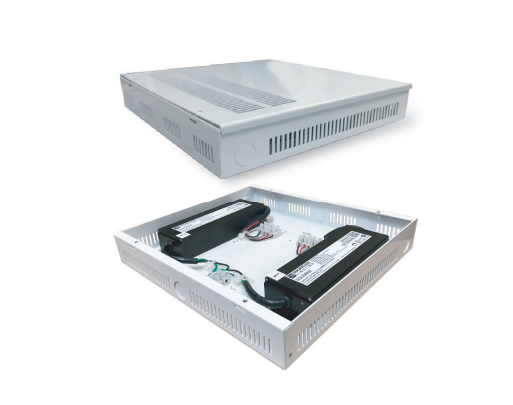

This is the Magnitude EZJ-S-D-60-24DC, a EZJ-Box with SOLIDRIVE constant voltage electronic drivers in a junction box. The input voltage is 120-277 volt and the max output current is 1250mA each driver. This junction box includes (2) 30 Watt constant voltage drivers, totaling 60 watts and has 0-10V dimming. The physical dimensions of this product is 11" length x 12" width x 2.13" height with a 5 year warranty.
