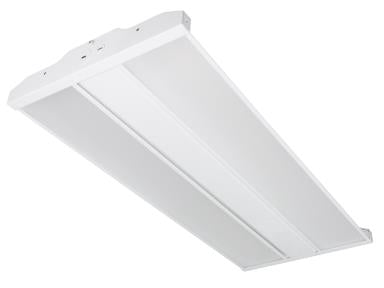

135/155/185 Watt LED Linear High Bay Light Fixture 4000/5000K

MaxLite SKU: 110859
MaxLite 135/155/185 Watt LED Linear High Bay Light Fixture 4000/5000K

135/155/185 Watt LED Linear High Bay Light Fixture 4000/5000K

MaxLite SKU: 110859
  • DLC Premium Listed
Regular price $106.18
/
Color Temp
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

The MaxLite HLE LED Highbay Linear Series offers industry leading efficacy (150lm/W), customizability with CCT select switch (4000K & 5000K) and scalability with a Wattage select model, for high ceiling applications such as warehouses, distribution centers, manufacturing facilities and big box retailers. This compact highbay covers a wide range of applications with 20,000 lumens at just 1.4 ft length, all the way up to 60,000 lumens at 3.7 ft length.

This item is the MaxLite HLE-135WUF-CS (110859). The MaxLite wattage and color selectable Linear LED High Bay fixture consumes 135/155/185 watts of 120-277 volt energy. They generate between 21,060-27,750 lumens (up to 150 lumens per watt), have a rated lumen maintenance of 50,000 hours based on L70 lumen depreciation, a selectable color temperature of either 4000K Cool White or 5000K Daylight and a CRI of 80. These LED high bay lights have a 0-10V dimmable configuration and carry a 5 year warranty.

Manufacturer MaxLite
MPN HLE-135WUF-CS
SKU 110859
UPC 767627055638
Lighting Technology LED
Wattage 135/155/185 Watts
Voltage 120-277VAC
Color Temperature (Kelvin) 4000/5000K
Lumens 21,060/23,710/27,750 Lumens
Efficiency (Lumens Per Watt) 150 LPW
Dimmable Yes, 0-10V Dimming
Beam Angle 90 Degrees
Rated Life 50,000 Hours
CRI (Color Rendering Index) 80 CRI
Power Factor ≥0.9
Housing Sheet Steel
Diffuser Polycarbonate
Operating Temperature -4°F to 122°F (-20°C to 50°C)
Dimensions 22.8" x 10.2" x 1.77"
Certifications DLC Premium, FCC Compliant, RoHS Compliant
DLC Product ID S-XFPM6J
Warranty 5 Year Standard
