Name: 2 Foot 9 Watt R17D Single Ended Bypass LED T8 Sign Tube
Brand: EiKO
SKU: 10901
Price: 18.89 USD
Availability: InStock

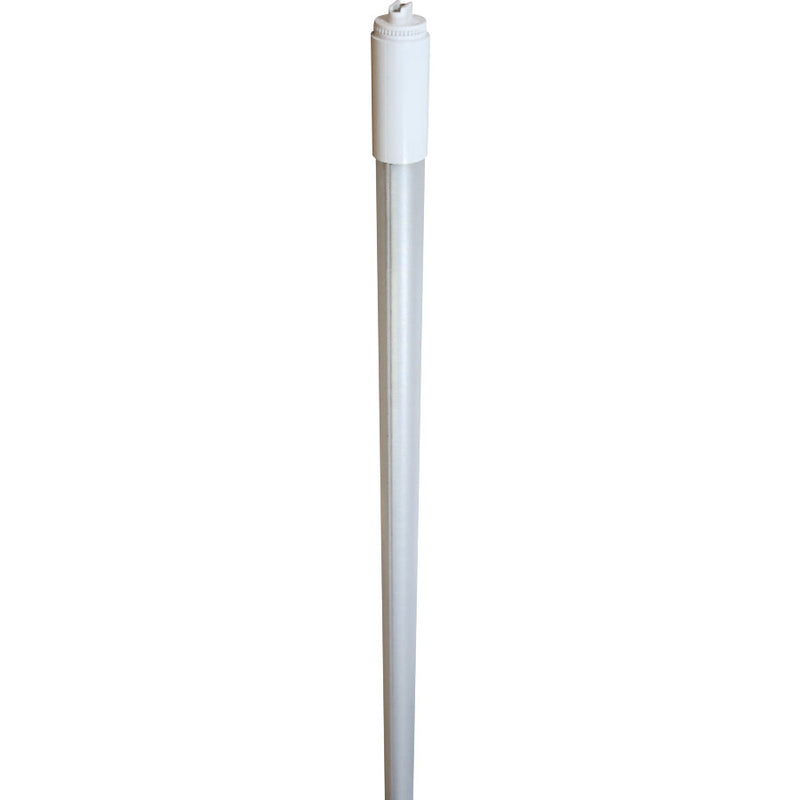

EiKO 2 Foot 9 Watt R17D Single Ended Bypass LED T8 Sign Tube 4000K Cool White

Price

Color Temp

4000K Cool White

6500K Daylight

Quantity

Please call to confirm availability.

**BALLAST MUST BE BYPASSED IN ORDER TO USE**

Free Shipping on Orders Over $750

Most in-stock items ship the same day!

Helping you maximize your green® since 2007!

[{"id":42962136006900,"title":"4000K Cool White","option1":"4000K Cool White","option2":null,"option3":null,"sku":"10901","requires_shipping":true,"taxable":true,"featured_image":{"id":37684558659828,"product_id":7733389852916,"position":1,"created_at":"2022-07-27T15:11:42-04:00","updated_at":"2022-07-27T15:11:43-04:00","alt":"EiKO 2 Foot 9 Watt R17D Single Ended Bypass LED T8 Sign Tube 4000K Cool White  ","width":900,"height":900,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/products\/1319_a345463d-00fe-4ae7-80b0-940f74381831.jpg?v=1658949103","variant_ids":[42962136006900,42962136039668]},"available":true,"name":"2 Foot 9 Watt R17D Single Ended Bypass LED T8 Sign Tube - 4000K Cool White","public_title":"4000K Cool White","options":["4000K Cool White"],"price":1889,"weight":907,"compare_at_price":null,"inventory_management":"shopify","barcode":"031293109019","featured_media":{"alt":"EiKO 2 Foot 9 Watt R17D Single Ended Bypass LED T8 Sign Tube 4000K Cool White  ","id":30259011059956,"position":1,"preview_image":{"aspect_ratio":1.0,"height":900,"width":900,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/products\/1319_a345463d-00fe-4ae7-80b0-940f74381831.jpg?v=1658949103"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":42962136039668,"title":"6500K Daylight","option1":"6500K Daylight","option2":null,"option3":null,"sku":"10902","requires_shipping":true,"taxable":true,"featured_image":{"id":37684558659828,"product_id":7733389852916,"position":1,"created_at":"2022-07-27T15:11:42-04:00","updated_at":"2022-07-27T15:11:43-04:00","alt":"EiKO 2 Foot 9 Watt R17D Single Ended Bypass LED T8 Sign Tube 4000K Cool White  ","width":900,"height":900,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/products\/1319_a345463d-00fe-4ae7-80b0-940f74381831.jpg?v=1658949103","variant_ids":[42962136006900,42962136039668]},"available":true,"name":"2 Foot 9 Watt R17D Single Ended Bypass LED T8 Sign Tube - 6500K Daylight","public_title":"6500K Daylight","options":["6500K Daylight"],"price":1889,"weight":907,"compare_at_price":null,"inventory_management":"shopify","barcode":"031293109026","featured_media":{"alt":"EiKO 2 Foot 9 Watt R17D Single Ended Bypass LED T8 Sign Tube 4000K Cool White  ","id":30259011059956,"position":1,"preview_image":{"aspect_ratio":1.0,"height":900,"width":900,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/products\/1319_a345463d-00fe-4ae7-80b0-940f74381831.jpg?v=1658949103"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

Details
Specifications
Documents
Request A Quote

Details

Introducing EiKO's single ended LED Sign Tubes! These sign tubes are a perfect solution for retrofitting or new sign installations. These tubes are available in a variety of lengths and two color temperatures: 4000K cool white and 6500K daylight. The EiKO sign tubes are a LED outdoor replacement retrofit solution for conventional T8HO fluorescent lamps. Upgrading your light sources to LED is made easier by EiKO. The LEDs on these lamps provide reduced maintenance costs and lower energy bills.

This is the EiKO LED9WT8/24/8(XX)-DS-G8, a 2 foot double sided T8 sign tube. They are non-dimmable lamp and it will produce 950 lumens of light output (that's an awesome 106 lumens per watt). With a built in universal line voltage driver these led lamps operate at 120-277 volts with a CRI of 80. This tube light consumes just 9 watts with an operating temperature of -30° C (-22° F) to 45° C (113° F). The physical dimensions of the EiKO LED sign tubes are 21.84 inches long by 1.10 inches wide. Each LED9WT8/24/8(XX)-DS-G8 LED T8 tube light carries a 5 year limited warranty and is rated for 50,000 hours.

Specifications

Voltage	120-277 Volt
Wattage	9 Watts
Lumens	950 Lumens
CRI	80
Beam Angle	210 Degrees
Dimensions	1.10" (MOD) x 21.84" (MOL)
Rated Life	50,000 Hours
Warranty	5 Year Limited

Documents

EiKO Single Ended Bypass LED T8 Sign Tube Specification Sheet

EiKO Single Ended Bypass LED T8 Sign Tube Installation Instructions
