20/30/40 Wattage and Color Selectable 1x4 Back Lit LED Panel Doorframe Retrofit Kit 3500/4000/5000K

Keystone Technologies SKU: KT-RKIT40PS-14PD-8CSA-VDIM
Keystone Technologies 20/30/40 Wattage and Color Selectable 1x4 Back Lit LED Panel Doorframe Retrofit Kit 3500/4000/5000K Selectable

20/30/40 Wattage and Color Selectable 1x4 Back Lit LED Panel Doorframe Retrofit Kit 3500/4000/5000K

Keystone Technologies SKU: KT-RKIT40PS-14PD-8CSA-VDIM
  • DLC Listed
/
Color Temp
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

Keystone's Future Fit Troffer Kits provide a convenient, efficient way to transition outmoded fluorescent troffers to energy-conserving LED systems. These LED retrofit kits come with all the components needed for hassle-free setup with no requirement for removing the fluorescent fixture from the ceiling. By utilizing a retrofit kit for optimization to an LED troffer light fixture, both energy and upkeep expenses can be significantly reduced.

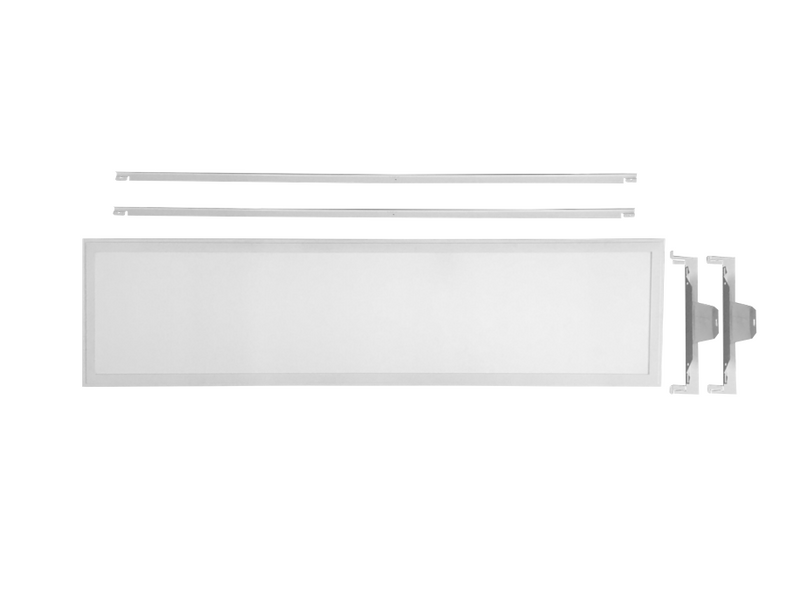

Our back-lit flat panel retrofit kits are designed to reduce SKUs with the versatility provided by Power Select and Color Select technology. Adjust as needed in the field: choose from three lumen output options and three color temperature options. Construction features precise optical lenses over each individual LED, offering optimal light diffusion and consistent surface illumination, with no risk of yellowing over product lifetime. The back-lit flat panel retrofit kit includes an LED module (a dimming LED driver and LED array), mounting bars and brackets, and all necessary hardware.

This Keystone Technologies 1x4 Back Lit LED Panel Doorframe Retrofit Kit has a wattage consumption of 20/30/40 and operates on 120-277 volts. It produces 2,200-4,500 lumens, with a lumen efficacy of 110-113 lumens per watt, and a rated lumen maintenance of 50,000 hours, based on L70 lumen depreciation. It offers users a selectable color temperature of 3500K Bright White, 4000K Cool White or 5000K Daylight, with a CRI of 80. This product is backed by a 5 Year Limited Warranty.

Manufacturer Keystone Technologies
MPN KT-RKIT40PS-14PD-8CSA-VDIM
SKU KT-RKIT40PS-14PD-8CSA-VDIM
UPC 843654131009
Lighting Technology LED
Voltage Universal 120-277V
Dimmable Yes, 0-10V Dimming
Rated Life 50,000 Hours (L70)
CRI (Color Rendering Index) 80 CRI
Power Factor >0.9
Housing Aluminum
Operating Temperature -20ºC to 40ºC
Dimensions 45.47" L x 10.12" W x 1.23" H
Certifications DLC Listed, cULus
DLC Product ID PHUSXCLW
Environment Damp Location
Warranty 10 Year Limited


Wattage 20 Watts
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 2,200 Lumens 2,250 Lumens 2,250 Lumens
Efficiency (Lumens Per Watt) 110 LPW 113 LPW 113 LPW


Wattage 30 Watts
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 3,300 Lumens 3,400 Lumens 3,400 Lumens
Efficiency (Lumens Per Watt) 110 LPW 113 LPW 113 LPW


Wattage 40 Watts
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 4,400 Lumens 4,500 Lumens 4,500 Lumens
Efficiency (Lumens Per Watt) 110 LPW 113 LPW 113 LPW

Keystone Selectable LED Back Lit Panel Doorframe Retrofit Kit Specification Sheet

Keystone Selectable LED Back Lit Panel Doorframe Retrofit Kit DLC Product Listing
