The Eiko Edge Lit Flat Panel LED Fixture Series, typically used to replace 2x2 and 2x4 fluorescent troffer lighting fixtures, is designed to lay in drop ceilings in offices, schools, and healthcare applications. These LED flat panels are fully dimmable, and are compatible with building controls, motion sensors, timers, and daylight harvesting systems. The design of the flat lay in troffer produces an even, consistent shadowless light. The LEDs enable long life, high lumen maintenance, and high CRI and are low maintenance and constructed without hazardous materials.

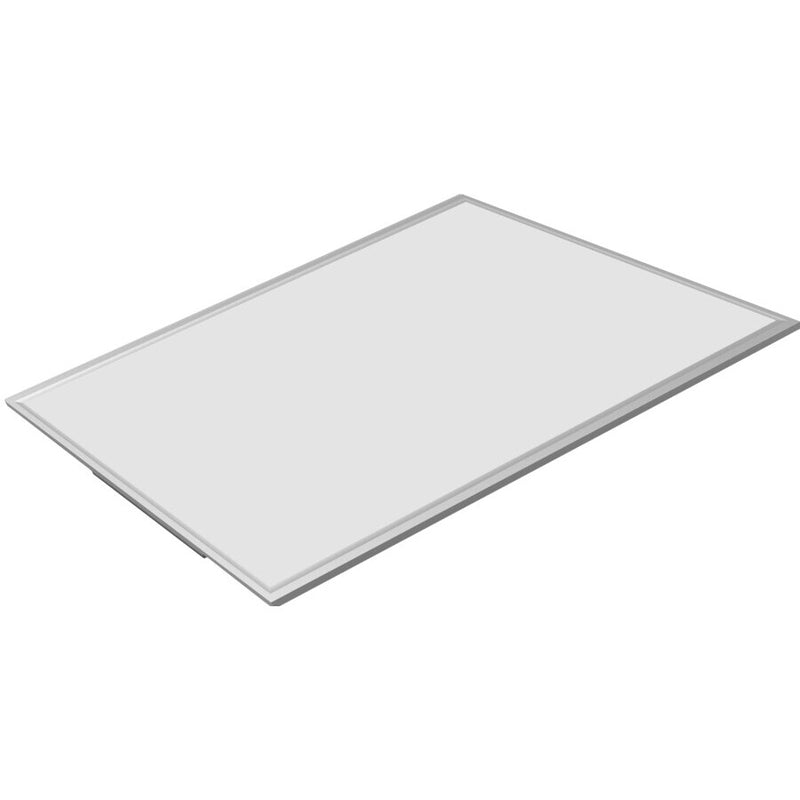

High efficiency LED's installed in each SLM22-3C-(XX)K-U flat light fixture produce uniform color consistency. The ultra slim, modern design, with a smooth, edge lit waveguide lens provides impressive visual comfort and each 2x2 LED panel weighs in at just 10 pounds each. The face frame is extruded aluminum painted white for a high end finish. In keeping with the quality of the rest of the materials, the lens is a translucent white polycarbonate that produces an even, consistent shadowless light. Designed to mount into existing recessed frames, these flat panel LED lights fit standard T-Bar and narrow grid drop ceilings.

These Eiko Edge Lit LED flat ceiling panels consume just 30 watts of 120-277 volt energy and the driver has a power factor of 99%. The SLM22-3C-(XX)K-U generates 3,000 lumens - that's an efficacy of 100 lm/W with a rated lumen maintenance of 50,000 hours based on L70 lumen depreciation. With a daylight color temperature of 5000K or a cool white color temperature of 4000K and a CRI of at least 80, this 2x2 flat light fixture is designed to be compatible with most standard 0-10V dimming controls. All Eiko LED Flat Panel fixtures carry a 5 Year Warranty.
