30/40/50 Wattage and Color Selectable 2x4 Back Lit LED Panel Doorframe Retrofit Kit 3500/4000/5000K

Keystone Technologies SKU: KT-RKIT50PS-24PD-8CSA-VDIM
Keystone Technologies 30/40/50 Wattage and Color Selectable 2x4 Back Lit LED Panel Doorframe Retrofit Kit 3500/4000/5000K Selectable

30/40/50 Wattage and Color Selectable 2x4 Back Lit LED Panel Doorframe Retrofit Kit 3500/4000/5000K

Keystone Technologies SKU: KT-RKIT50PS-24PD-8CSA-VDIM
  • DLC Listed
/
Color Temp
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

Keystone’s innovative Future Fit Troffer Kits are the ideal solution to convert outdated fluorescent troffers into energy-efficient, contemporary LED systems. Each LED retrofit kit includes everything needed for a seamless installation without modifying the existing fixture mounting. There is no need to remove the fluorescent fixture mounting from the ceiling. Using a retrofit kit to upgrade to an LED troffer light fixture is an easy way to reduce both energy and maintenance costs.

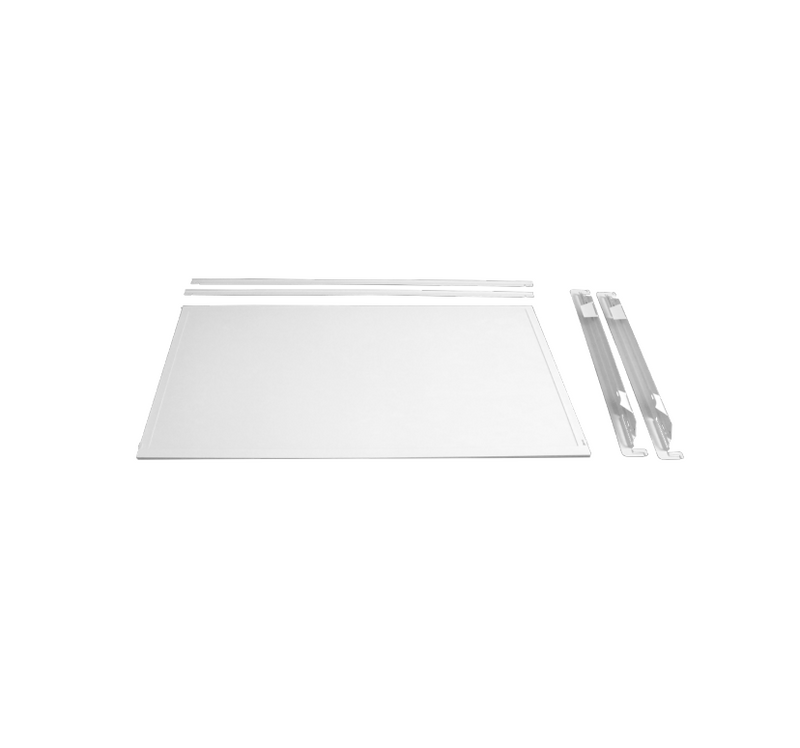

Our back-lit flat panel retrofit kits are designed to reduce SKUs with the versatility provided by Power Select and Color Select technology. Adjust as needed in the field: choose from three lumen output options and three color temperature options. Construction features precise optical lenses over each individual LED, offering optimal light diffusion and consistent surface illumination, with no risk of yellowing over product lifetime. The back-lit flat panel retrofit kit includes an LED module (a dimming LED driver and LED array), mounting bars and brackets, and all necessary hardware.

This item is the Keystone Technologies Wattage and Color Selectable 2x4 Back Lit LED Panel Doorframe Retrofit Kit. This Flat Panel consumes 30/40/50 watts of 120-277 volt energy. They generate between 3,300-5,600 lumens (110-113 lumens per watt), have a rated lumen maintenance of 50,000 hours based on L70 lumen depreciation, a selectable color temperature of 3500K Bright White, 4000K Cool White or 5000K Daylight with a CRI of 80. These Keystone LED back lit flat panels carry a 5 Year Limited Warranty.

Manufacturer Keystone Technologies
MPN KT-RKIT50PS-24PD-8CSA-VDIM
SKU KT-RKIT50PS-24PD-8CSA-VDIM
UPC 843654130996
Lighting Technology LED
Voltage Universal 120-277V
Dimmable Yes, 0-10V Dimming
Rated Life 50,000 Hours L70
CRI (Color Rendering Index) 80+ CRI
Power Factor >0.9
Operating Temperature -4ºF to 104ºF
Dimensions 45.47"x22.13"x1.23"
Certifications cULus, DLC Listed
DLC Product ID PCK1SREP
Environment Damp Location
Warranty 10 Year Limited Warranty


Wattage 30 Watts
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 3,300 Lumens 3,400 Lumens 3,400 Lumens
Efficiency (Lumens Per Watt) 110 LPW 113 LPW 113 LPW


Wattage 40 Watts
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 4,400 Lumens 4,500 Lumens 4,500 Lumens
Efficiency (Lumens Per Watt) 110 LPW 113 LPW 113 LPW


Wattage 50 Watts
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 5,500 Lumens 5,600 Lumens 5,600 Lumens
Efficiency (Lumens Per Watt) 110 LPW 112 LPW 112 LPW

Keystone Selectable LED Back Lit Flat Panel Doorframe Retrofit Kit Specification Sheet

Keystone Selectable LED Back Lit Flat Panel Doorframe Retrofit Kit DLC Product Listing
