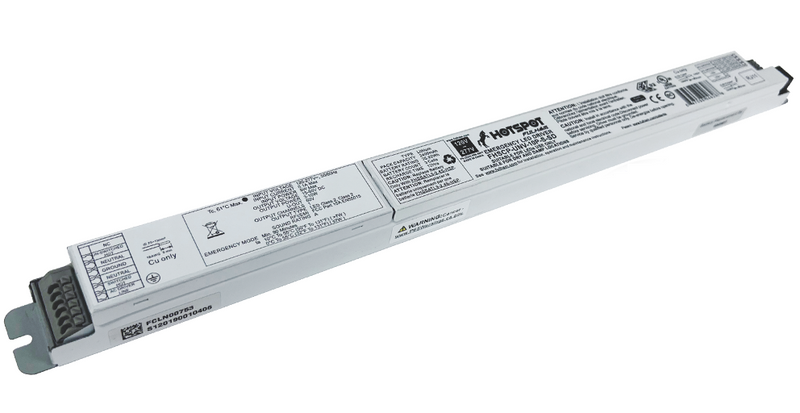

10 Watt 1000mA 90 Minute LED Emergency Backup LED Driver

Fulham SKU: FHSCP-UNV-10P-S-SD
Fulham 10 Watt 1000mA 90 Minute LED Emergency Backup LED Driver

10 Watt 1000mA 90 Minute LED Emergency Backup LED Driver

Fulham SKU: FHSCP-UNV-10P-S-SD
Regular price $160.26
/
Please call to confirm availability.
Shipping calculated at checkout.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

LED Driver Cross Reference:
Universal ELD10UNVLPL
Universal ELD10UNVL
Keystone KT-EMRG-LED-12-1200-AC
Keystone KT-EMRG-LED-12-1200-AC /DF
Fulham FHSCP-UNV-10.7WL
ESL Lighting ESL-EMG-SL1-OTB-9W
ESL Lighting ESL-EMG-SL6-CSC-8W

Fulham Company Group is a leading global provider of intelligent, sustainable commercial lighting components and electronics for use in commercial general lighting, parking structure, signage, horticultural, UV and other applications. The company develops and manufactures a variety of award-winning LED and emergency products, as well as legacy products across multiple lighting platforms. Fulham is dedicated to intelligent, sustainable lighting solutions that give their users the power to control their light.

Fulham introduces their HotSpot LED Emergency Driver. The Constant Power Emergency LED Driver provides safe and efficient LED lighting during any emergency situation, with five different wattage options available. During a power outage, the innovative HotSpot LED emergency driver activates the LED luminaire it is installed to, providing efficient emergency lighting. The constant power design guarantees the desired lumen output. The HotSpot LED emergency driver is cULus classified and with the emergency driver and batter combined in a single unit, it can be installed into virtually any LED luminaire and can be field installed in minutes. It can be mounted inside or on top of the luminaire, or even in a remote mount configuration.

This constant power emergency LED driver is the FHSCP-UNV-10P-S-SD, which has an input voltage of 120-277V. This driver runs on 5 watts, with an input current of 1000mA and an output voltage of 15-55VDC. Another feature of this LED emergency driver is the included illuminated LED test switch which allows for simple monitoring an required compliance testing. This driver has an estimated run time of 90 minutes once it turns on during an emergency situation. The ambient operating temperature is 10°C to 55°C. This emergency driver comes with a 5 year warranty and a long life, maintenance-free lithium battery that fully recharges in 12 hours.

Manufacturer Fulham
MPN FHSCP-UNV-10P-S-SD
SKU FHSCP-UNV-10P-S-SD
UPC Code 847098046288
Lighting Technology LED
Driver Emergency
Output Current 55-666mA
Input Current 0.1A
Input Wattage 5 Watt
Output Wattage 3-10 Watt
Input Voltage 120-277V
Output Voltage 15-55VDC
Frequency 50/60Hz
Operating Temperature 10°C to 55°C
Rated Life 50,000 Hours
Emergency Operation 90 Minute Run Time
Dimensions 16.7" L x 1.18" W x 1" H
Certifications Class 2, RoHS Compliant
Environment Dry Location
Warranty 5 Year Limited
