Universal Lighting Technologies' Everline LED drivers are ideal for maximum energy savings and control applications. Now, Universal is introducing their line of code-compliant Emergency LED Drivers for various applications, including downlighting, high bays, and low profile applications. Now, when your power fails, you can depend on Universal LED Emergency Drivers to operate your LED fixtures at a reduced lumen level in order to provide a safe environment.

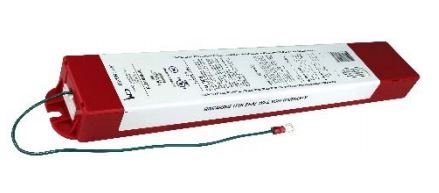

This product is Universal's 10W Emergency LED Driver for linear applications, part number ELD10UNVL. This universal input (120-277V) emergency LED driver works in conjunction with an AC LED driver that has an output current not to exceed 3.0A. The emergency driver consists of a high-temperature nickel-cadmium battery, charger and electronic circuitry in one case. When AC power fails, the driver immediately switches to the emergency mode, operating the LEDs at a reduced lumen output. The ELD10UNVL can deliver up to 10 watts to an LED load for 90 minutes. When AC power is restored, the emergency driver automatically returns to the charging mode. It takes 24 hours for the battery to completely recharge. If used in an emergency-only fixture, then no AC driver is necessary.
The ELD10UNVL does not affect normal fixture operation and may be used with either a switched or unswitched fixture. If a switched fixture is used, an unswitched hot lead must be connected to the emergency driver. The emergency driver must be fed from the same branch circuit as the AC driver. Per UL requirements, the polycarbonate ELD10UNVL must be enclosed if remote mounted outside of the fixture. Installation is not recommended with fixtures where the ambient temperature may fall below 0°C. The product is suitable for installation in sealed and gasketed fixtures, as well as for indoor and damp locations. An illuminated test switch to monitor the charger and battery, as well as installation hardware will be included. These LED drivers carry a 5 year limited warranty.
Manufacturer | Universal Lighting |
MPN | ELD10UNVL |
SKU | ELD10UNVL |
UPC Code | 768386673521 |
Lighting Technology | LED |
Driver | Emergency |
Output Current | 3.0A (3000mA) |
Input Wattage | 4 Watt |
Output Wattage | 10 Watt |
Input Voltage | 120-277VAC |
Output Voltage | 15-50VDC |
Frequency | 50/60Hz |
Operating Temperature | 0°C to 55°C |
Emergency Operation | 90 Minute Run Time |
Dimensions | 14.5" L x 2.25" W x 1.18" H |
Certifications | Class 2, Title 20 Compliant |
Environment | Dry and Damp Location |
Warranty | 5 Year Limited |
