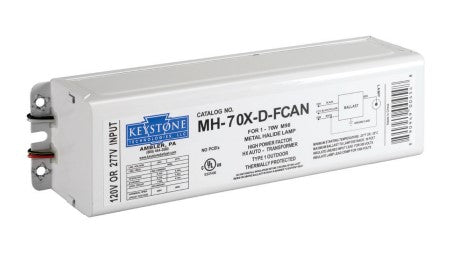

Keystone Ballast MH-70X-D-FCAN, Replacement F-Can HID Ballast Kit for 70 Watt Metal Halide. This F Can ballast is designed with Circuit Type HX-HPF, for one 70W Metal Halide Lamp Type, M98 ANSI Ballast Type, 79-82 Input Watts, 120/277 Input Voltage, 60 Hz. The maximum distance this F Can ballast can be mounted from your 70 watt metal halide bulb is 10 feet. It has -30C minimum start temperature, UL temperature code of A and an insulation class of 180C. The physical dimensions of this F-Can ballast are 11.08" Long x 3.23" Wide x 2.75" High with 11.40" mounting dimensions and 12-14" leads. Please verify all dimensions for your application as these dimensions may vary by manufacturer. This Keystone Ballast carries a 2 year warranty.
A ballast, like any other electrical device, generates heat during normal operation. Excessive temperature will have an adverse effect on ballast life. Normal temperature limits for Universal F-Can Ballasts have a maximum case temperature of 90°C. For proper installation, insure that remote ballasts are properly vented and mounted to a heat-dissipating surface. Ballasts in metallic casings must always be grounded.
| Manufacturer | Keystone Technologies |
| MPN | MH-70X-D-FCAN |
| SKU | MH-70X-D-FCAN |
| UPC | 890949007402 |
| Lighting Technology | Metal Halide |
| Wattage | 70 Watts |
| Input Voltage | 120/277V |
| Frequency | 60Hz |
| Regulation | 5% |
| ANSI Type | M98 |
| Circuit Type | HX-HPF |
| Starting Temperature | -30ºC |
| Dimensions | 11.8" L x 3.23" W x 2.75" H |
| Certifications | RoHS Compliant |
| Warranty | 2 Year Standard |
